CONE INFO
Model
CC-4828 Center Cone 48″ Tall
Body Diameter-48″
Neck Diameter-28″
CC-3628 Center Cone 36″ Tall
Body Diameter-48″
Neck Diameter-28″
CC-3624 Center Cone 24″ Neck Reducer
Body Diameter-48″
Neck Diameter-24″
OC-4828 Offset Center Cone 48″ Tall
Body Diameter-48″
Neck Diameter-28″
OC-3628 Offset Cone 36″ Tall
Body Diameter-48″
Neck Diameter-28″
OC-3624 Offset Cone 24″ Neck Reducer
Body Diameter-48″
Neck Diameter-24″
RISER INFO
Model
R-24 Riser 24″ Tall Riser
Diameter-48″
Height 24″
R-36 Riser 36″ Tall Riser
Diameter-48″
Height 36″
BASE INFO
Model
SB-22 -Sanitary Bottom Base with 6″, 8″ Outlet
Diameter-48″
Height-22″
SB-30 -” Sanitary Bottom Base with 8″ Extension, 6″, 8″ Outlet
Diameter-48″
Height-30″
SB-42 -22″ Sanitary Bottom Base with 8″ +12″ Extension, 6″, 8″ Outlet
Diameter-48″
Height-42″

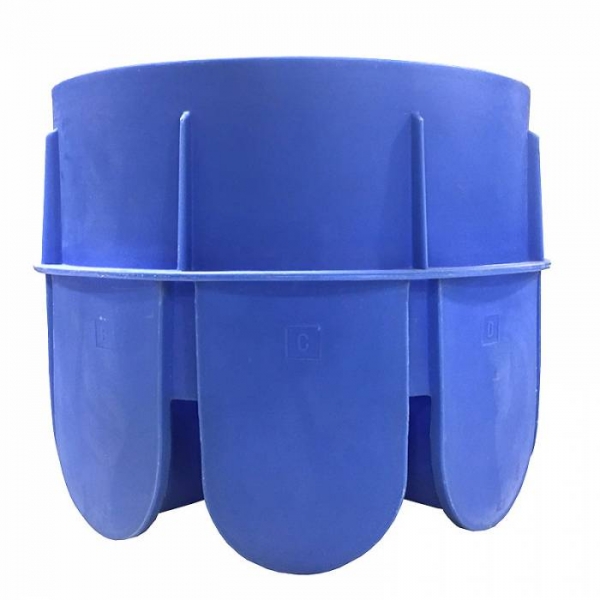

LSB-30 Large Sanitary Bottom Base with 5 Inlets
Diameter-48″
Height-30″
LSB-42 30″ Large Sanitary Bottom Base with 12″ Extension with 5 Inlets
Diameter-48″
Height-42″
INLET INFO

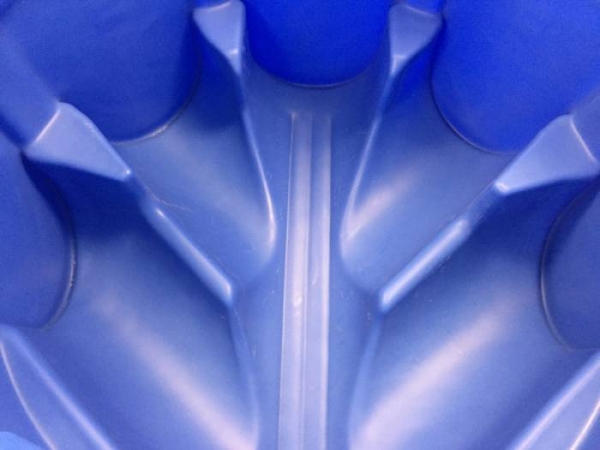

5 standard inlet channels with a 2% flow molded-in will accommodate from 4″ up to 12″ pipe
GASKET INFO
Used to provide the seal between the manhole components and does not allow infiltration or exfiltration.
MH-28
Diameter-28″
Height- 2-1/2″
Width-1-1/64″
Material- Ethylene Propylene Diene Monomer Ring
MH-48
Diameter-48″
Height- 2-1/2″
Width-1-1/64″
Material- Ethylene Propylene Diene Monomer Ring

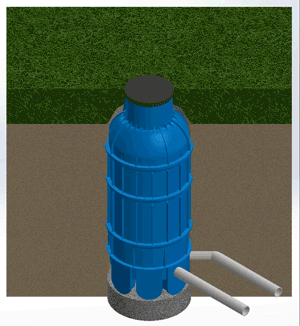

Large Manhole Configuration
RHINO MANHOLES by Fibertech provide the highest level of reliability for applications varying from sewer, wastewater, landfill leachate, storm water collection systems to below grade utility inspection chambers.
Field tested under a variety of conditions
RHINO MANHOLES have been field tested under a variety of conditions to meet exacting design and quality standards for long life and corrosion resistance installation. They have been proven to outlast concrete, steel, and fiberglass manholes.
Using 100% virgin polyethylene plastic, our industrial strength plastic manhole unit offers a wide range of chemical resistance to acids and many organic compounds. Because of this resistance, attack from hydrogen sulfide, sulfuric acid and other aggressive chemicals does not occur.
OPTIONS
• Long/Short Center Cone
• Long/Short Offset Cone
• 24”/36” Tall Riser
• Round Bottom Base
• Sanitary Bottom Base
• 8” and 12” Base Extensions
• 6”/8”/10”/12” Dia. Spout
• 4”-12” Dia. Inlets
• Plastic/Concrete Lid
STANDARDS
• High Density Polyethylene

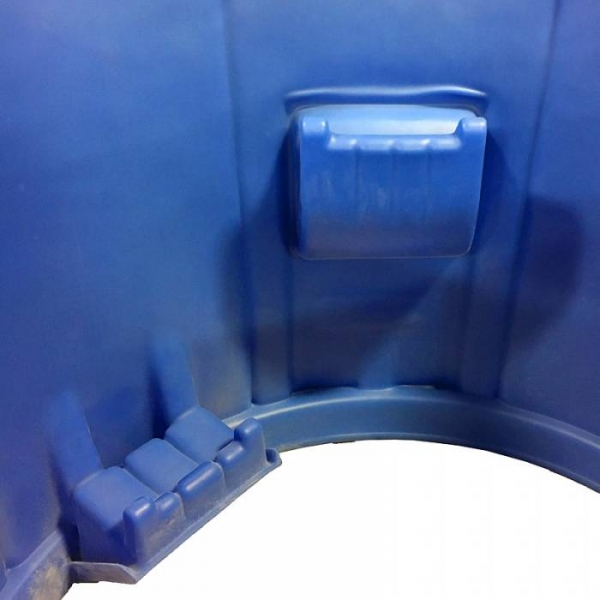

• Molded-In Step System
• Gaskets Seals
• Base, Riser, Cone, Lid
• Flow Channels/Inlets
• H-20 Load Rating
• 0.5 inch Wall Thickness
• 28” Dia. Lid
BENEFITS
• Durable
• Light Weight
• Water Tight Gasket Seal
• No Infiltration/Exfiltration
• Easy Install
• Easily Modified
• Corrosion & H2S Resistant
• 100% Recyclable
• Flotation Resistant
• Variety of Option & Configurations
